100% prefabricated in our factory!
The Compofloor renovation floor has been developed to simplify the construction process as much as possible. The floor is 100% prefabricated in our factory, instead of in your home. This means that your choice for Compofloor guarantees minimal inconvenience, minimal damage and no waste in your home after installation.
Lees hieronder meer over onze renovation floor:
The Compofloor system
The Compofloor floor system consists of prefabricated elements with a minimum Rc value of 4.38 m2K/W. The elements consist of composite cassettes which are filled with a high-quality insulation material.
The elements are lightweight, which means they can be supported in an ARBO responsible manner. The advantage of this is that no structural recalculation is required for the load-bearing capacity of the foundation, as the floor is no heavier than the original wooden floor.
After finishing with OSB4 boards the floor weighs only 25 kg/m2. The maximum load of the floor is 275 kg/m2.

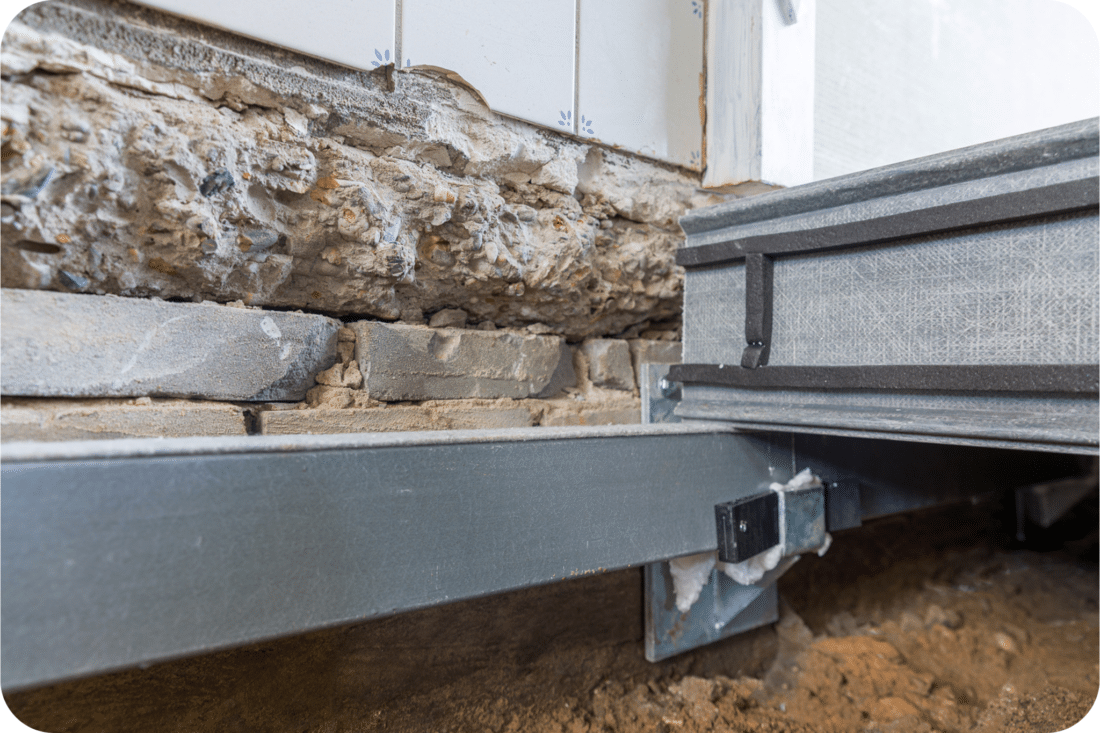

The Compofloor anchor
The Compofloor anchor is characterised by the supporting tube on the back of the anchor. This ensures that even in old walls the forces can be transferred in the correct manner in the construction wall. The position of the anchor ensures that the vulnerable spots of the existing beam recesses of the old wooden beam layer are avoided and the sound transmission to the neighbours is greatly reduced. The anchor provides sufficient space (4-5 cm) to bring the water pipes and electrical conduits along the wall into the crawl space.
Unique support construction
The composite beam that runs over the supporting anchors ensures optimum transfer of forces. This composite beam is always provided with felt padding to prevent creaking and noise pollution.

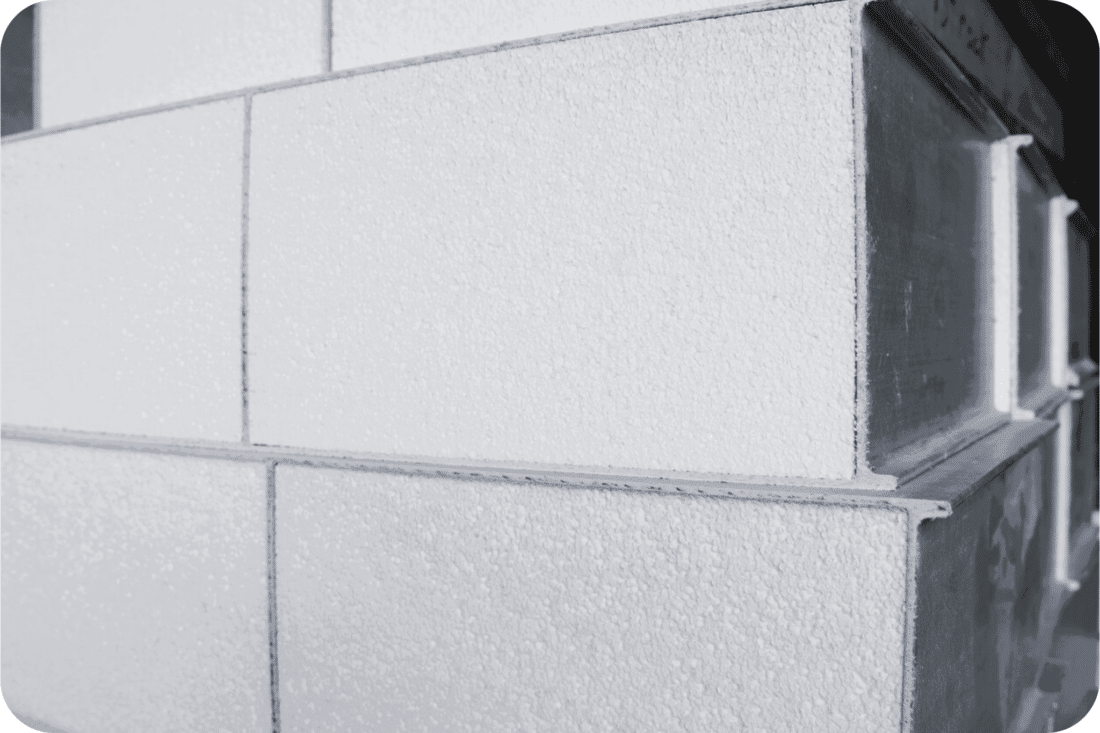

Het innovatie Compofloor element
Het Compofloor element is rondom omsloten met een glasvezelversterkt polyester, waardoor roesten en rotten van het element is uitgesloten. Het holle element is volledig gevuld met een hoogwaardige isolatie. De basis-isolatiewaarde geeft een totale isolatiewaarde van Rc = 4,38m2K/W voor de gehele opbouw van de vloer. Het element is lucht- en waterdicht.

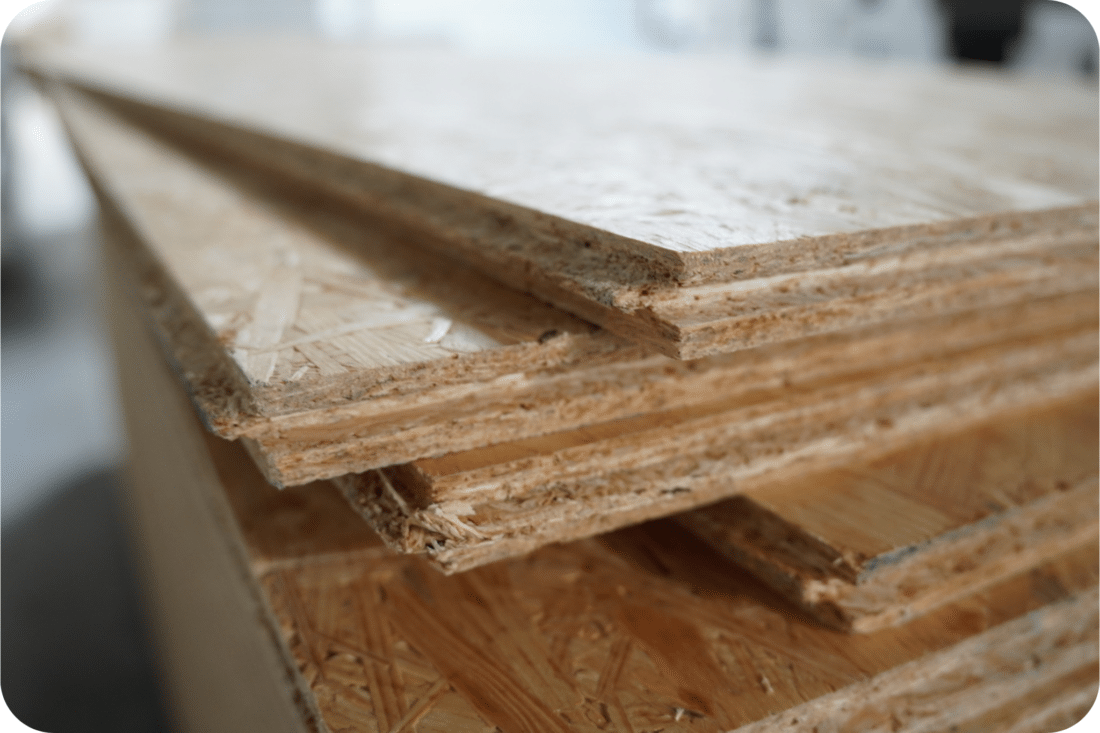

The structural top layer
In onze basisvloer hebben wij een doorontwikkelde OSB4 plaat als topvloer opgenomen. OSB4 is speciaal doorontwikkeld voor zware last dragende constructies en geschikt voor vochtige omstandigheden. De platen worden haaks op de elementen geschroefd om een optimale koppeling tussen de elementen te verzorgen. Dit resulteert in een samenwerking tussen de elementen en daardoor een comfortabele vloer.
Product specifications
